While reverse osmosis (RO) systems excel at water purification, traditional units can waste up to 4 gallons for every gallon purified.
Fortunately, modern innovations have dramatically improved efficiency, with premium systems approaching a 1:1 ratio of purified water to wastewater.
Whether you're optimizing an existing system or considering a new one, several strategies can help minimize waste while maintaining excellent water quality.
Reverse osmosis is a water purification process that removes contaminants using a semipermeable membrane.
Basics of Reverse Osmosis
Reverse osmosis works by applying pressure to push water through a membrane with tiny pores. These pores allow water molecules to pass through while blocking larger particles, ions, and contaminants.
The process involves several key components:
Water entering the system is called feed water. As it passes through the membrane, it separates into two streams:
RO systems produce wastewater as an inherent part of their filtration process. The concentrate stream carries away rejected contaminants to maintain membrane efficiency.
Factors affecting wastewater production include:
Typical RO systems have a recovery rate of 50-75%. This means for every 100 gallons of feed water, 50-75 gallons become permeate and 25-50 gallons become concentrate.
Low feed water pressure can increase wastewater production. Systems operate optimally at pressures around 60 psi. Higher pressures improve efficiency and reduce waste.
Membrane fouling also impacts wastewater generation. As membranes accumulate contaminants, they become less efficient, producing more waste to maintain water quality.
Effective pre-treatment is crucial for reducing wastewater in reverse osmosis (RO) systems. Properly implemented strategies protect RO membranes, enhance system efficiency, and minimize water waste.

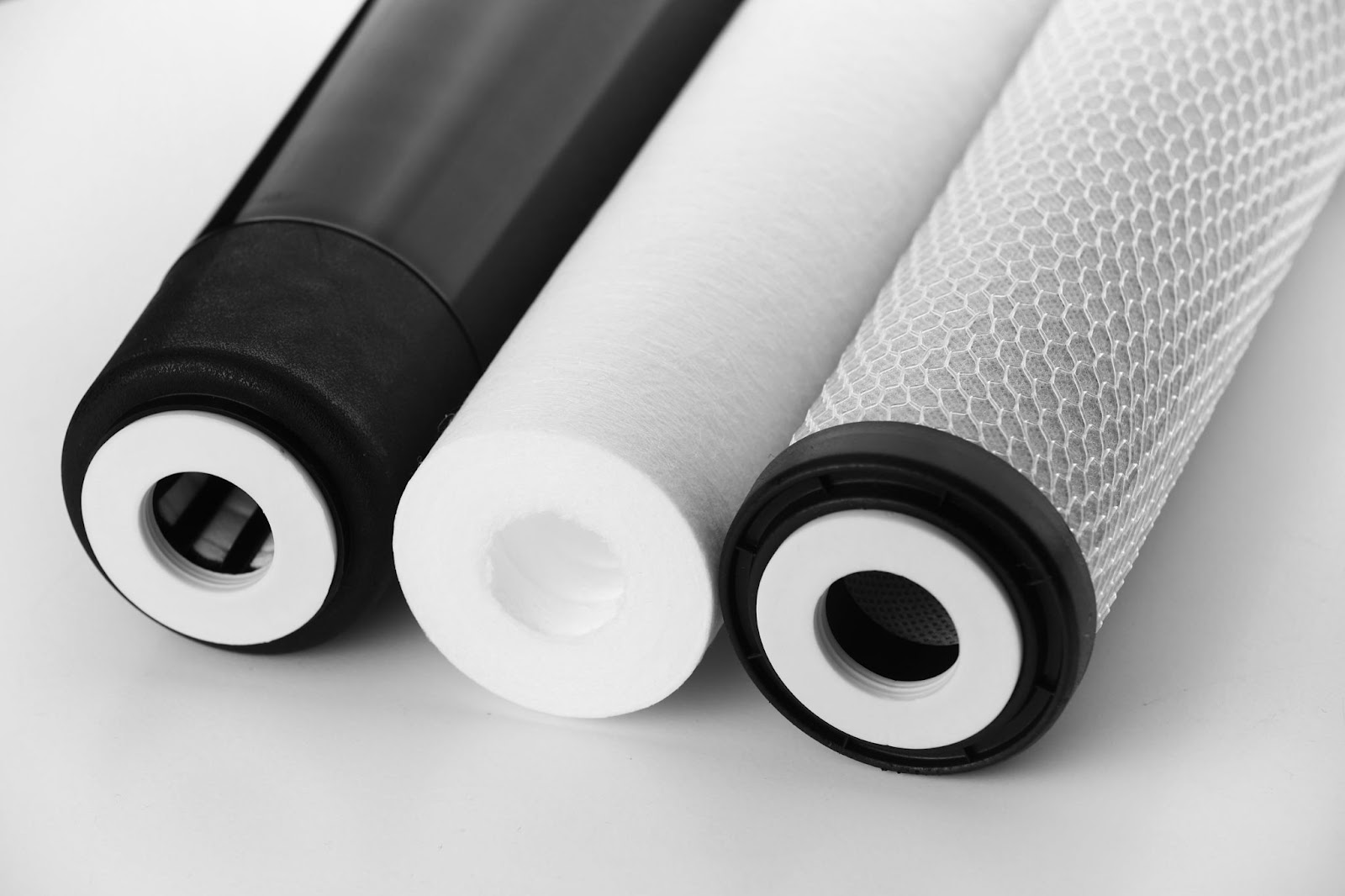

Sediment filters remove larger particles like dirt, sand, and rust from incoming water. Carbon filters absorb chlorine, organic compounds, and other contaminants that can damage RO membranes. Multi-stage filtration systems often combine sediment and carbon filters for comprehensive pre-treatment.
Some systems utilize depth filters, which trap particles throughout the filter media rather than just on the surface. This design increases dirt-holding capacity and extends filter life.
Microfiltration and ultrafiltration membranes offer even finer filtration, removing bacteria and some dissolved solids before the RO stage.
Water softeners exchange calcium and magnesium ions with sodium or potassium ions, reducing scale formation on RO membranes. This process is particularly important in areas with hard water.
Anti-scalants are chemical additives that prevent scale-forming minerals from precipitating and adhering to membrane surfaces. They work by interfering with crystal formation and growth.
Dosing systems inject precise amounts of anti-scalants into the feed water. The optimal dosage depends on water chemistry and system specifications.
Some modern anti-scalants are environmentally friendly and compatible with downstream processes. Regular monitoring and adjustment of anti-scalant dosage ensure optimal performance and minimized waste.
Proper maintenance is crucial for maximizing the efficiency of reverse osmosis (RO) systems and reducing wastewater production. Regular upkeep ensures optimal performance and longevity of system components.

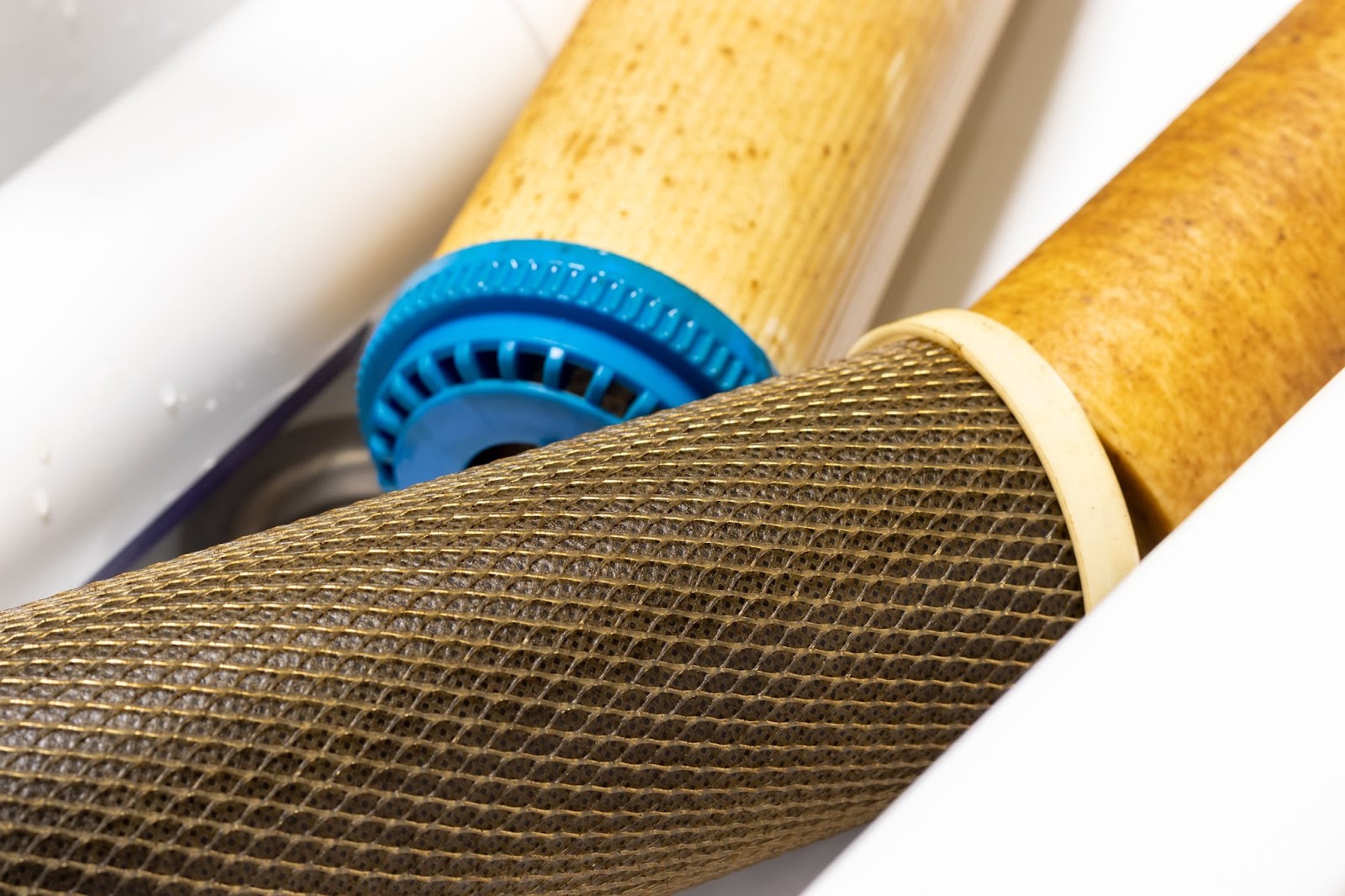

Timely replacement of pre-filters and post-filters is essential for RO system efficiency. These filters remove larger particles and contaminants before water reaches the membrane. Clogged or saturated filters force the system to work harder, increasing wastewater production.
Most manufacturers recommend changing pre-filters every 6-12 months. However, replacement frequency may vary based on water quality and usage. A sediment filter typically needs more frequent changes than a carbon filter.
Signs of filter saturation include:
Replacing filters on schedule helps maintain consistent water quality and reduces strain on the RO membrane.

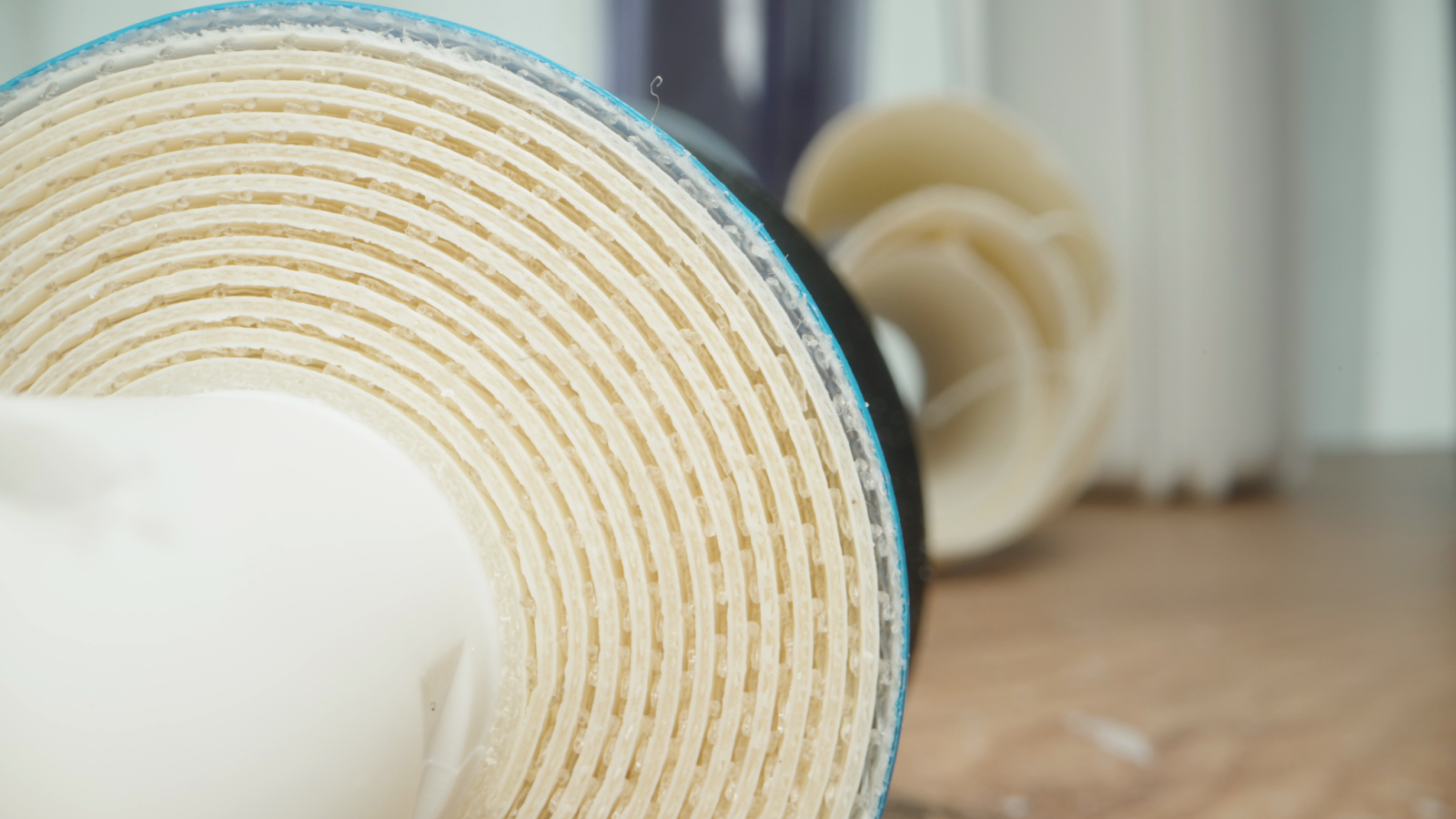

The RO membrane is the heart of the system and requires proper care to function efficiently. A well-maintained membrane produces more purified water and less wastewater.
Regular cleaning prevents scaling and fouling, which can impair membrane performance. Depending on water quality, membranes may need cleaning every 3-12 months.
Cleaning methods include:
Some systems feature automatic membrane flushing, which helps extend membrane life and maintain efficiency. For manual cleaning, follow manufacturer instructions carefully to avoid damaging the delicate membrane surface.
Monitoring the system's total dissolved solids (TDS) rejection rate can indicate when membrane cleaning or replacement is necessary. A decline in rejection rate often signals reduced membrane efficiency.
Reclaiming wastewater from reverse osmosis systems can significantly reduce overall water waste.
RO wastewater contains dissolved minerals that can benefit plants, making it suitable for landscape irrigation. This water can nourish lawns, gardens, and ornamental plants without requiring additional treatment.
Many homeowners and businesses direct RO reject water to outdoor irrigation systems through simple plumbing modifications. Drip irrigation systems work particularly well with RO wastewater, delivering it directly to plant roots.
For larger-scale applications, storage tanks can collect RO wastewater for later use during dry periods. This approach helps maintain green spaces even in water-scarce regions.
It's important to monitor soil salinity when using RO wastewater for irrigation, as mineral buildup can occur over time. Regular soil testing ensures long-term plant health and soil quality.
Toilets consume a significant portion of household water, making them an ideal target for wastewater recycling. RO reject water can be safely used for toilet flushing without compromising hygiene.
To implement this technique, RO wastewater is directed to a separate storage tank connected to the toilet's water supply. When the toilet is flushed, it draws from this tank instead of the main water line.
This method can save thousands of gallons of potable water annually in a typical household. Installation requires some plumbing modifications but is relatively straightforward for most properties.
Regular maintenance of the storage tank and associated plumbing is essential to prevent bacterial growth and ensure proper system function. Adding a small amount of chlorine to the storage tank can help maintain water quality.
Recent advances in reverse osmosis technology have led to significant improvements in reducing wastewater. These innovations focus on enhancing system efficiency and membrane performance.
Energy recovery devices (ERDs) play a crucial role in minimizing wastewater in RO systems. These devices capture and reuse the energy from the concentrate stream, reducing overall energy consumption and improving system efficiency.
Pressure exchangers are a popular type of ERD. They transfer pressure directly from the concentrate to the feed water, reducing the load on high-pressure pumps.
Turbochargers are another effective ERD option. They recover energy from the concentrate stream to assist the main high-pressure pump, lowering energy requirements and operational costs.
Implementation of ERDs can lead to energy savings of up to 60% in large-scale RO plants. This increased efficiency directly correlates to reduced wastewater production.
Innovations in membrane technology have significantly improved RO system performance and reduced wastewater generation. High-efficiency membranes allow for greater water recovery rates while maintaining excellent contaminant rejection.
Nanomaterial-enhanced membranes incorporate materials like graphene oxide or carbon nanotubes. These advanced membranes offer improved water flux and fouling resistance, leading to higher recovery rates and less frequent cleaning cycles.
Biomimetic membranes, inspired by natural water filtration processes, show promise in enhancing water permeability. These membranes can potentially increase water recovery while maintaining high salt rejection rates.
Self-cleaning membranes with special coatings or surface modifications reduce fouling and scaling. This technology extends membrane life and maintains optimal performance, ultimately reducing wastewater production.
RO wastewater can be used to water plants. It contains dissolved minerals that may benefit plant growth. However, the water's high mineral content could accumulate in soil over time. Mixing RO wastewater with regular water can help balance mineral levels for plant irrigation.
Consuming RO wastewater is not recommended. While it contains minerals, it also concentrates contaminants removed during the filtration process. These may include heavy metals, bacteria, and other potentially harmful substances. It's best to use RO wastewater for non-potable purposes only.
Several methods can reduce RO system wastewater. Installing a permeate pump can improve efficiency. Maintaining proper inlet pressure and regularly replacing filters and membranes also helps. Some systems offer a wastewater recycling feature that redirects water back through the filtration process.
An efficient RO system typically has a waste-to-product ratio between 2:1 and 4:1. This means for every gallon of purified water, 2-4 gallons of wastewater are produced. Modern, high-efficiency systems can achieve ratios as low as 1:1, significantly reducing water waste.
RO wastewater can be used in aquariums with caution. It may help maintain mineral levels in freshwater tanks. However, it's crucial to test the water quality first. The concentrated minerals and potential contaminants could harm sensitive aquatic life if used improperly.
Several factors can lead to excessive wastewater production. Low inlet water pressure reduces efficiency, forcing the system to waste more water. Clogged or worn-out filters and membranes also contribute to increased waste. A malfunctioning shut-off valve or improper system settings may cause continuous water flow to the drain.
